WXD2020
WXD2020
Item No.:
WXD2020N
2-Channel Solder- and Desoldering Station, 200 W (255 W)
Product features
-

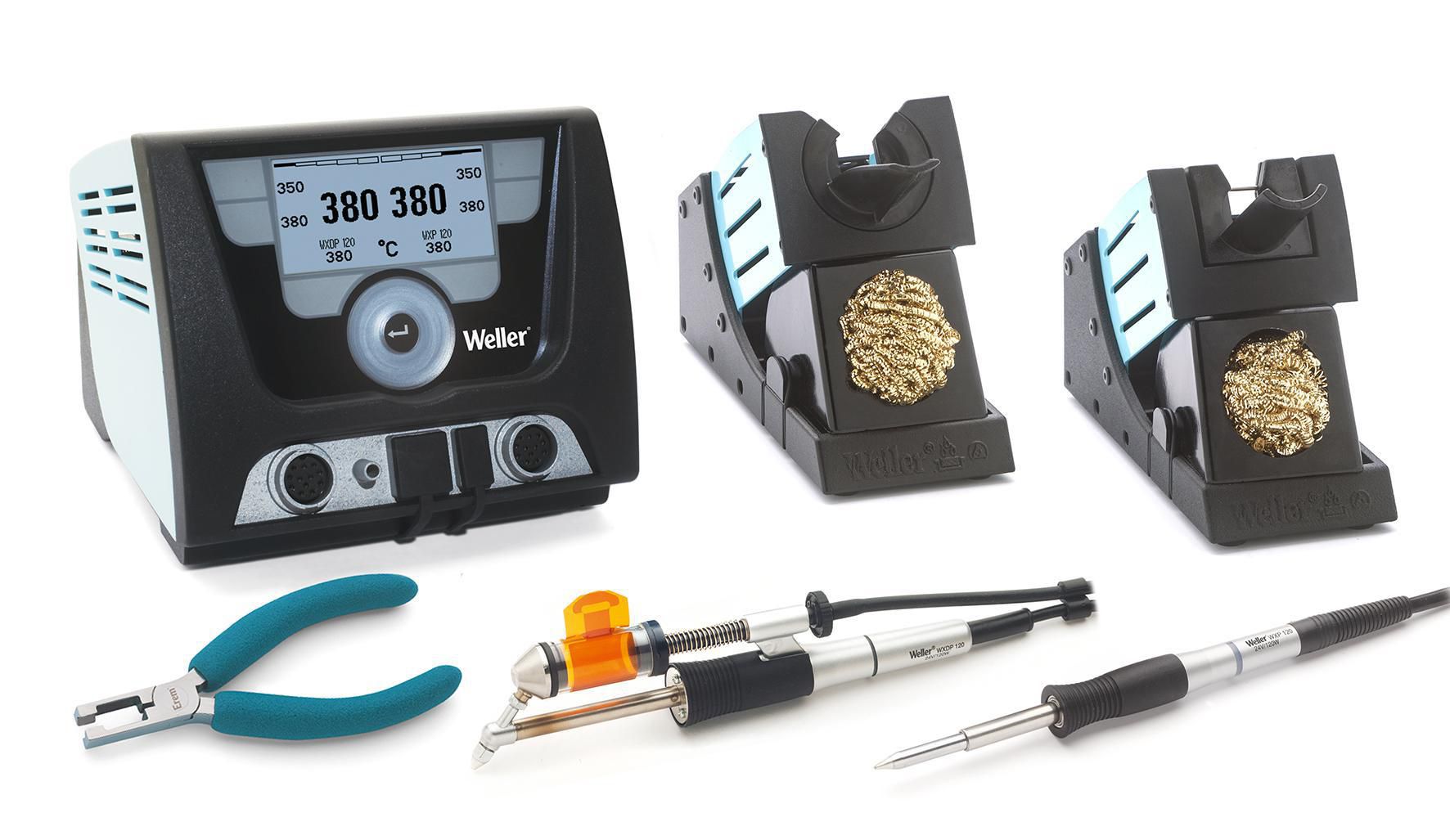

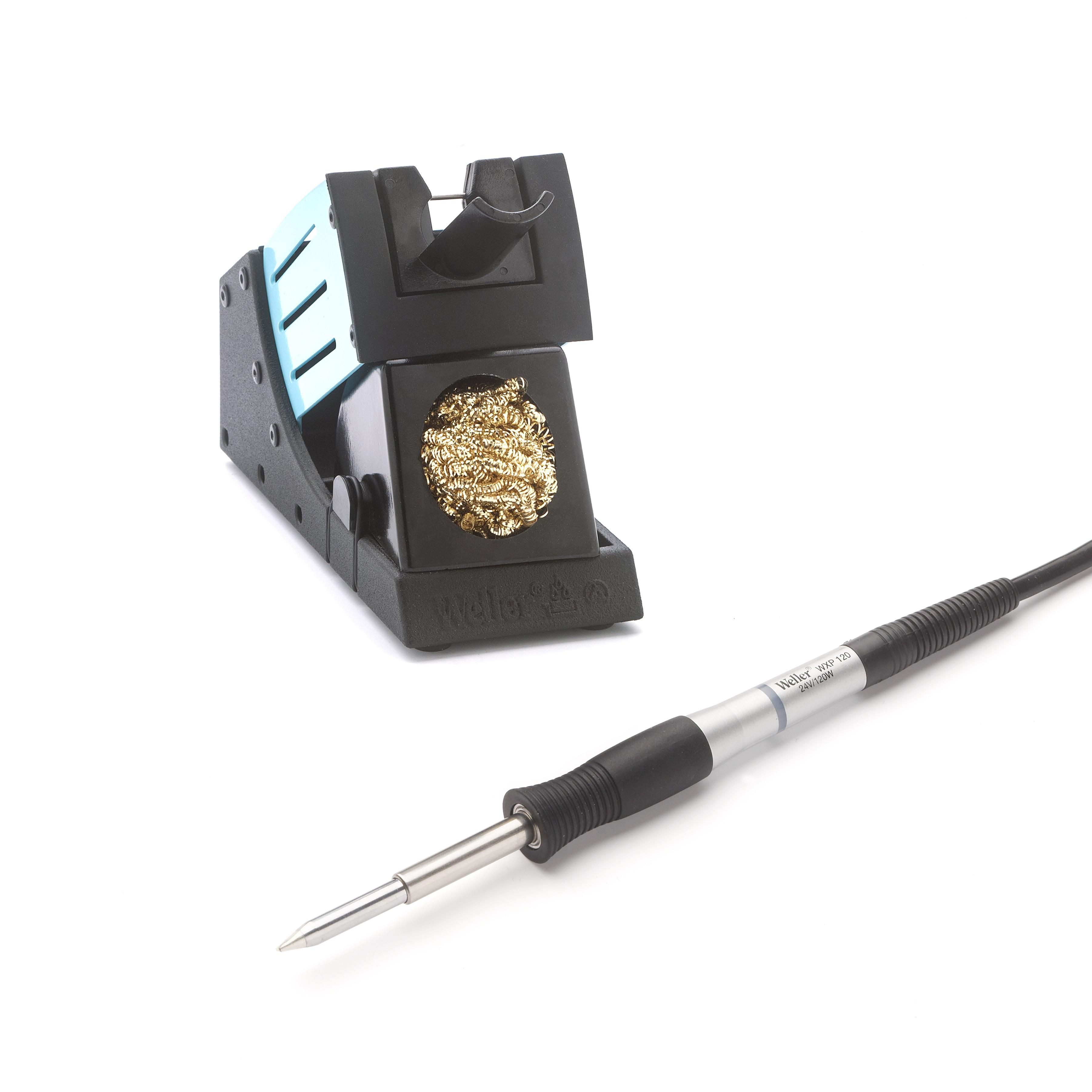

Soldering and desoldering station WXD 2, 2 channels with WXDP 120 and soldering iron WXP 120
-
Soldering- and desoldering tools with intelligent WX technology
-
Connection to external compressed air supply required
-
Energy effective: automatic stand-by mode for tools
-

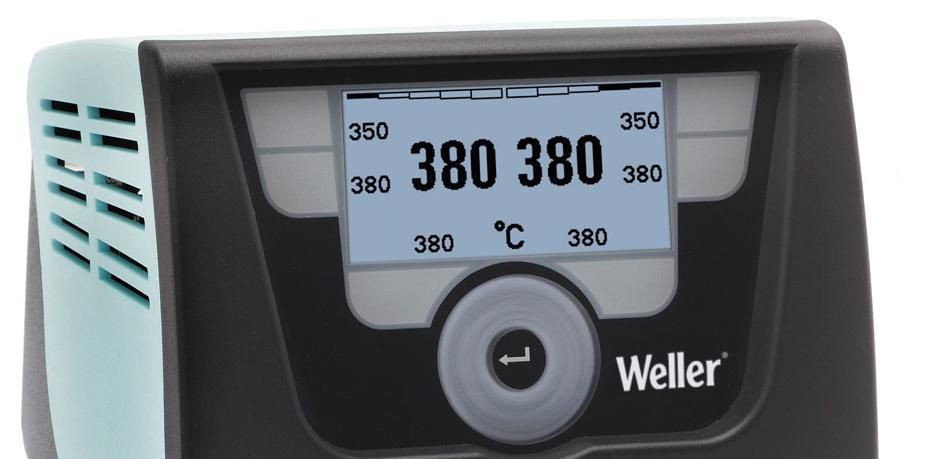

Patented, ESD safe glass display. Simple and fast setting of soldering parameter.
-
Standby and auto off modes for energy savings
-
Peripheral control of WHP 1000 / WHP 3000 hot plates and Zero Smog 4V and 6V fume extraction units
Technical data
Dimensions L x W x H | 174.0 x 154.0 x 135.0mm |
Air Consumption | 35 l/min |
Air Pressure | 58 - 87 psi |

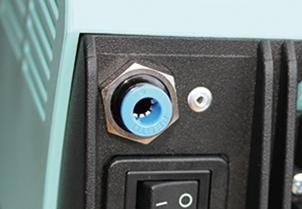

Compressed Air Connection (Outer Diameter) | 0.23 in |
Compressed Air Connection Accessory | Oil free, dry compressed air |
Desoldering | Yes |
Equipotential Bonding Socket | Via 3.5mm Pawl Socket on Back of Device |
ESD Safe | Yes |
Fuse | T2A |

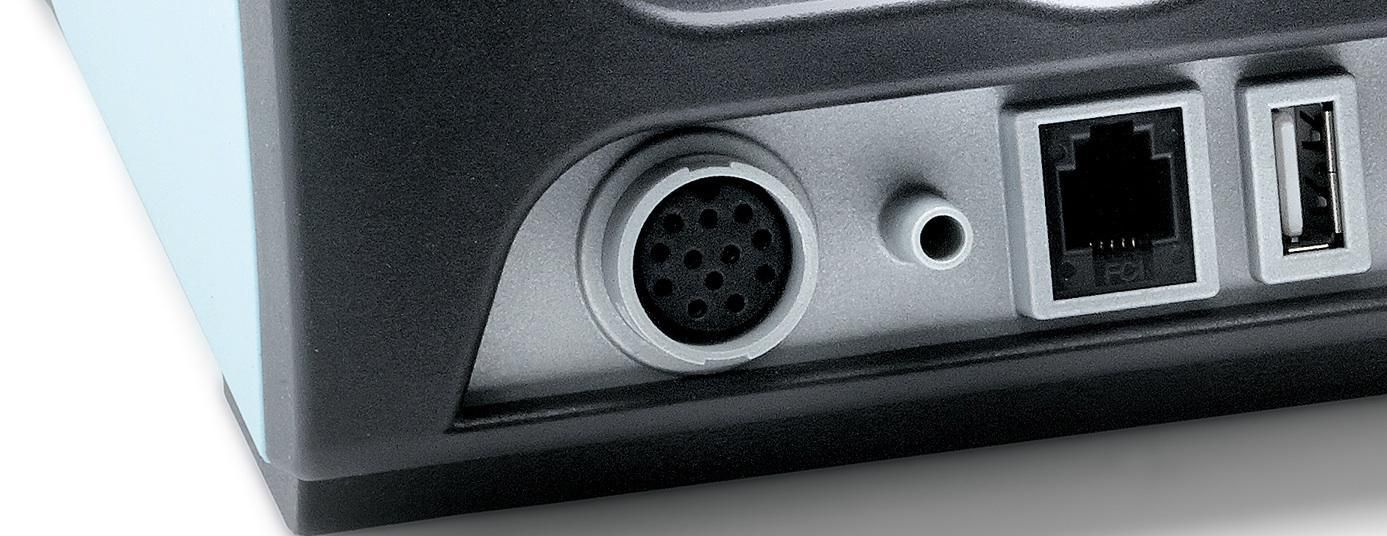

Interface | 1x USB, 2x RS232, 1x Switching Output |
Maximum Volume | 0.7 bar |
Number of Channels | 2 |
Operating Pressure | 4 - 6 bar 54 - 87 psi |
Power | 200 W (255 W) |
Temperature Accuracy °C | ± 9 °C |
Temperature Accuracy °F | ±9 °C |
Temperature Range (Depends on Tool) | 199 - 849°F |
Temperature Range °C | 93 - 454 °C |
Temperature Range °F | 199 - 849 °F |
Temperature Stability °C | ±2 °C |
Temperature Stability °F | ±2 °C |
Tip Type | WX |
UPC | 037103305275 |
USB | USB interface of firmware updates, parameterization and monitoring USB interface supports all standard USB flash drive types |
Vacuum | 0.5 bar (55 kPA) (8 psi) |
