Weller Tools GmbH

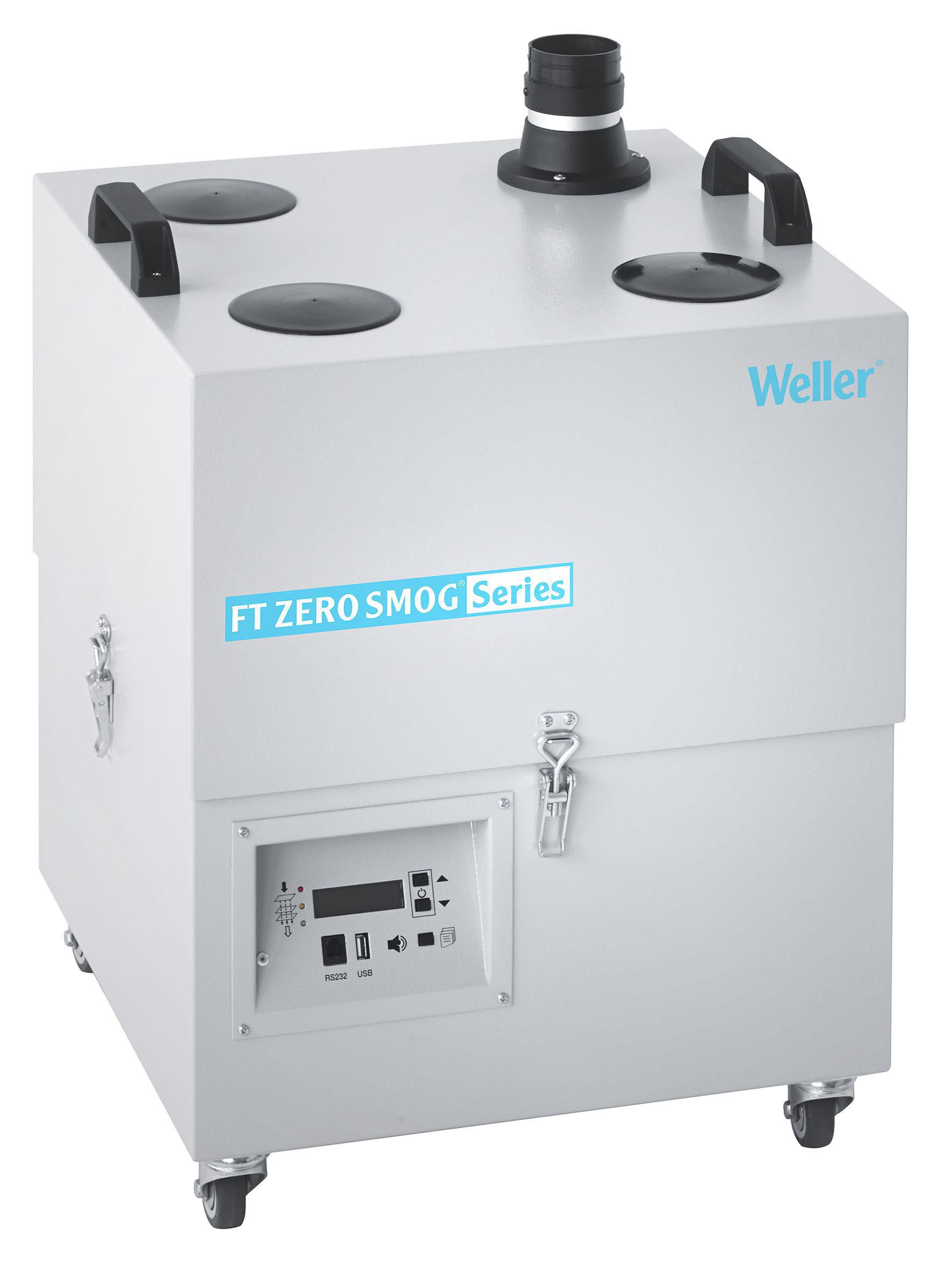

ZERO SMOG 6V FU.EXTR. 100/120V GASFILTER

ZERO SMOG 6V FU.EXTR. 100/120V GASFILTER

Item No.: T0053667299N
Mobile fume extraction unit 100-120 V with filter for adhesive fumes.

The Zero Smog 6V fume extraction unit is easy to install and operate. It is designed for use as a centralised system. A powerful, maintenance-free turbine provides continuous fume extraction at a maximum air extraction rate of 615m3/h. With constant flow control the turbine speed is automatically adjusted to demand, avoiding unnecessary waste of suction power resulting in energy savings.

The Zero Smog 6V fume extraction unit is easy to install and operate. It is designed for use as a centralised system. A powerful, maintenance-free turbine provides continuous fume extraction at a maximum air extraction rate of 615m3/h. With constant flow control the turbine speed is automatically adjusted to demand, avoiding unnecessary waste of suction power resulting in energy savings.

$ 4,390.00
Ex tax.
Product features
  • For up to 8 workplaces

  • 1 connection included

  • The constant flow control (CFC) guarantees a optimal air flow regulation for each work place independent of the connected workplaces.

  • Efficiency test via USB port

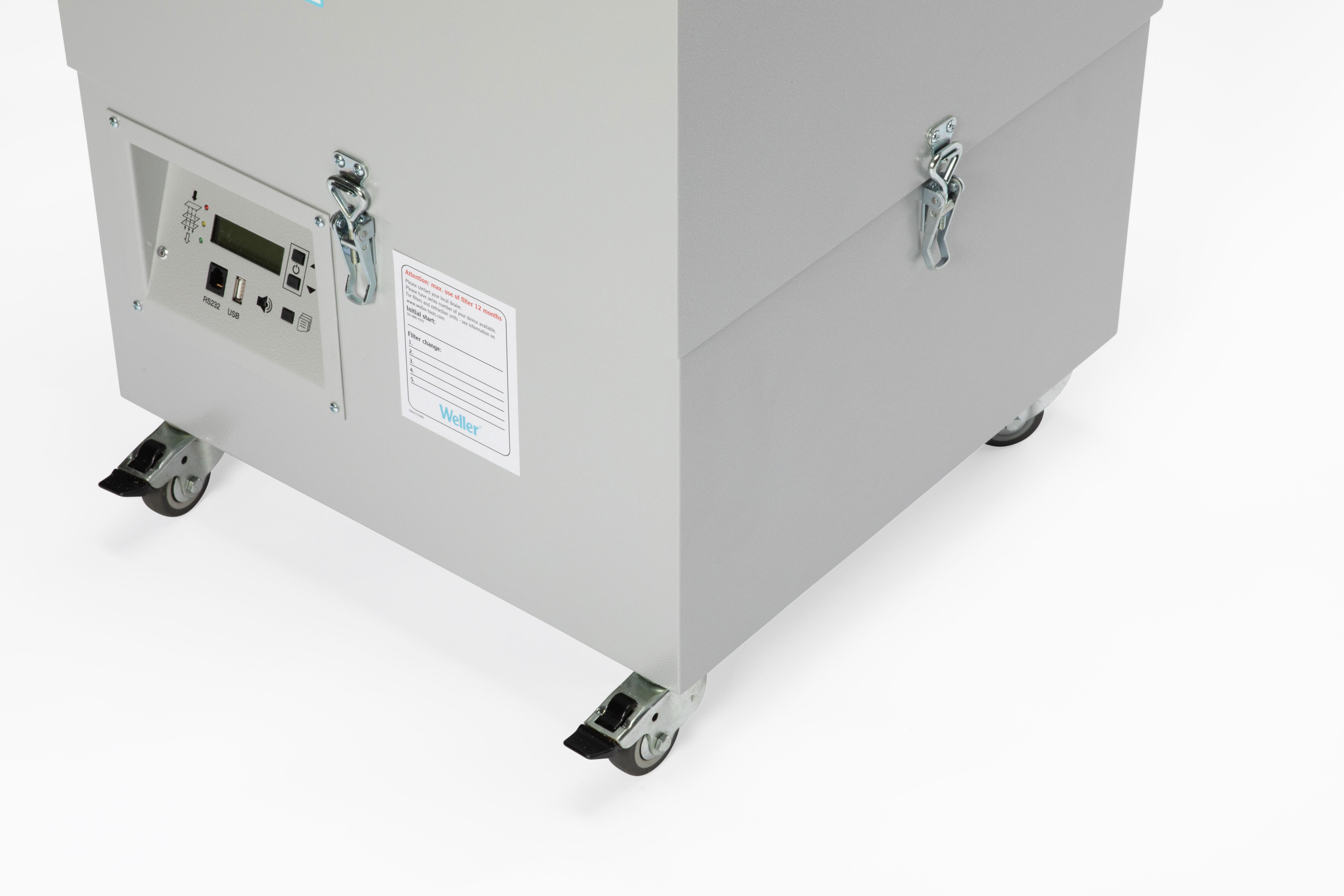

  • Electronic filter control with optical and acoustical filter alarm

Technical data
Dimensions L x W x H 460.0 x 460.0 x 665.0mm
Capacity (m³/h) 615 m³/h
Compact Filter Gas filter (50% activated carbon + 50% Puratex)
Compatible Nozzle WX WT
ESD Safe Yes
Fuse T6.3A
Maximum Capacity 1–8 Workstations
Maximum Vacuum 2,800 Pa
Power 460 VA
UPC 037103310811
USB The USB port can be used to load firmware updates, run efficiency tests and log data.

Items in the Box

Accessory

Filter
